MOORC MIPITESTER/MiPi Box Pro Programmer for EMMC and UFS

\n\n\n\n\n\n

\n\nFeatures:\n\n\n\nUFS / UMCP / ISP - Data transfer speed\n

• \n
• UFS/UMCP\n
  • \n
  • UFS 2.0 / 2.1 / 3.0 / 3.1 supported\n
  \n\n
• HS-G2 high speed mode\n
  • \n
  • 80-130 MB/s (writing) / 100-180 MB/s (reading)\n
  • for 100 MB higher speed you need to use USB 3.0 + high speed SSD\n
  \n\n
• UFS ISP\nFlying Line Mode PWM-G1 6-15MB/s (reading / writing)\n

\nEMMC/EMCP - Data transfer speed\n

• \n
• EMMC 4.5 / 5.0 / 5.1 supported\n
• HS200 80-120MB/s (write) / 120MB/s (read)\n
• EMMC ISP 5-15MB/s (read / write)\n

\nUpgrade NAND / PCIE / NVME / NOR / SPI / I2C Flash\n

• \n
• Supports UFS/UMCP dedicated descriptors, attributes, flags and other chip initialization and advanced settings\n
• LUN cutting\n
• Read / Write / Specify boot area\n
• Read / Write EMMC/EMCP User Area and BOOT1/2\n
• Read / Write advanced RPMB, GPP\n
• Enhanced Area settings\n
• Voltage output (VCC, VCCQ) 1.1 V - 3.3 V + intelligent short circuit protection\n

\nSupported BGA:\n

• \n
• UFS BGA 254\n
• UFS BGA 153\n
• eMMC BGA 153-169\n
• eMMC BGA 254\n
• eMMC BGA 221\n
• eMMC BGA 162-186\n

\n

\n\n\n\n \n\n\n\n \n\n\n\n \n\n\n\n \n\n\n\n

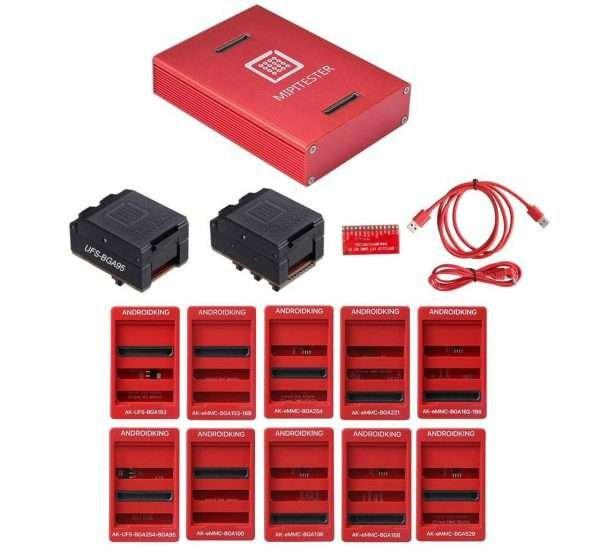

\n\nPackage Content:\n\nMiPi Box Pro - 1 pc.\n\nMiPi eMMC/UFS ISP Adapter S2 ISP- 1 pc.\n\nMiPi USB 3.0 Cable - 1 pc.\n\nMiPi DC5V Power Cable - 1 pc.\n\nMiPi UFS 254/153 Socket Adapter- 1 pc.\n\nMiPi ANDROIDKING eMMC/UFS Socket Adapter - 11 in 1 set:\n

1. \n
2. AK-UFS BGA 221 - 1 pc.\n
3. AK-eMMC BGA 254-BGA95 - 1 pc.\n
4. AK-UFS BGA 153 - 1 pc.\n
5. AK-eMMC BGA 153-169 - 1 pc.\n
6. AK-UFS BGA 254 - 1 pc.\n
7. AK-eMMC BGA 162-186 - 1 pc.\n

\nFrames (4 pcs):\n

1. \n
2. 7,5*9\n
3. 11*10\n
4. 12*15\n
5. 12*16\n

\n
