What is the purpose of this Motherboard Layered Testing Frame?

The Motherboard Layered Testing Frame is an essential tool that allows technicians to test the functions of a separated (layered) logic board without having to solder the top and bottom layers back together first.

Why is using this XZZ test fixture better than just re-soldering?

Using this XZZ test fixture prevents potential damage to the CPU or other components caused by repeated heating and disassembly. It saves a huge amount of time by confirming the logic board function testing is successful before the final, delicate re-soldering process.

Which iPhone models does this testing frame support?

This testing frame has options available for a massive range of models, covering everything from iPhone X all the way up to the latest iPhone 16 series, including all Pro, Pro Max, and Mini versions in between.

How reliable are the connections on this testing frame?

The Motherboard Layered Testing Frame uses high-quality, imported pure copper probes and CNC processing technology to ensure high alignment accuracy and reliable connections, giving you trustworthy test results.

XZZ Motherboard Layered Testing Frame for iPhone X to 16 Series

XZZ Motherboard Layered Testing Frame for iPhone X to 16 Series

(1 reviews)

The XZZ iSocket is a professional motherboard-layered test fixture for testing iPhone (X to 16 Pro Max) logic boards. This tool allows you to test all functions of a separated motherboard before re-soldering, preventing damage from repeated installations.

₹6,899~~₹8,999~~

(Excluding Transaction Fees 3.95%)

SKU:SF-2443-SOLD

Category:Mobile Repair Tools

5 days easy returns
Order yours before 12:30pm for same day dispatch

Guaranteed safe & secure checkout

XZZ Motherboard Layered Test Fixture

For iPhone X-16 Series

Test Before You Solder. Save Time & Prevent Damage.

The XINZHIZAO iSocket is an indispensable tool for any serious mobile repair technician. It allows you to perform a complete function test on a separated, layered motherboard without having to solder the layers together. This advanced inspection avoids damage from repeated heating and installation, saving you time, money, and frustration.

Available for All Major iPhone Models

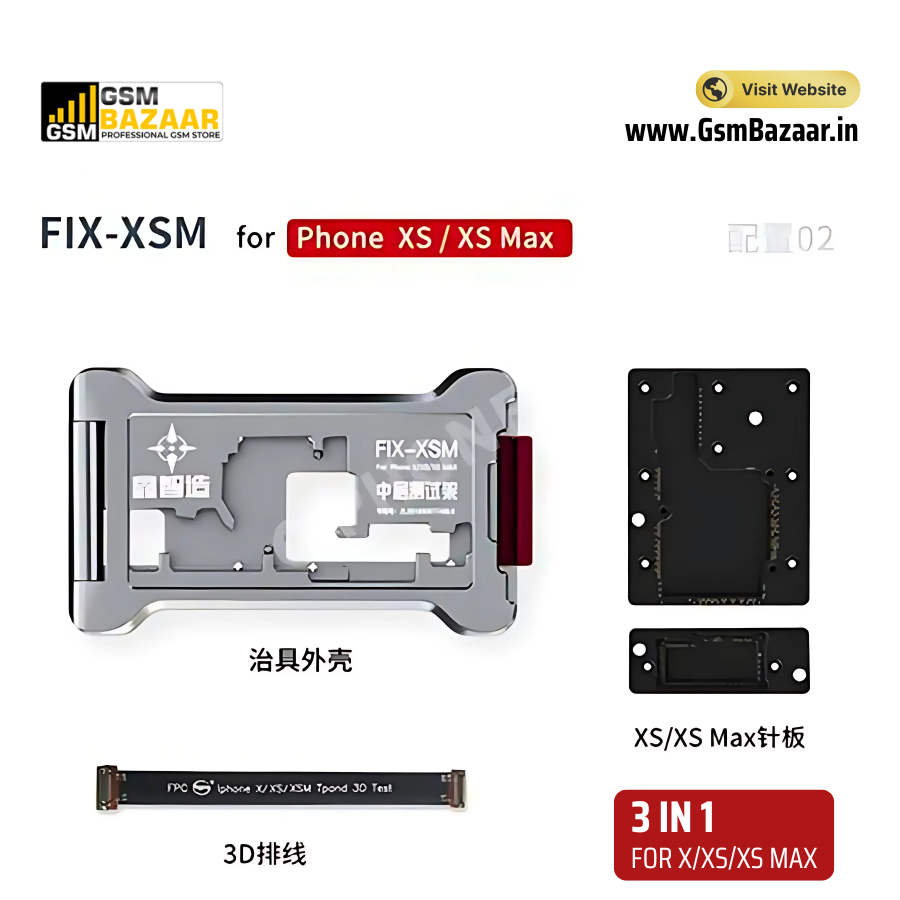

iPhone X Series Fixture

For iPhone X, XS, XS Max

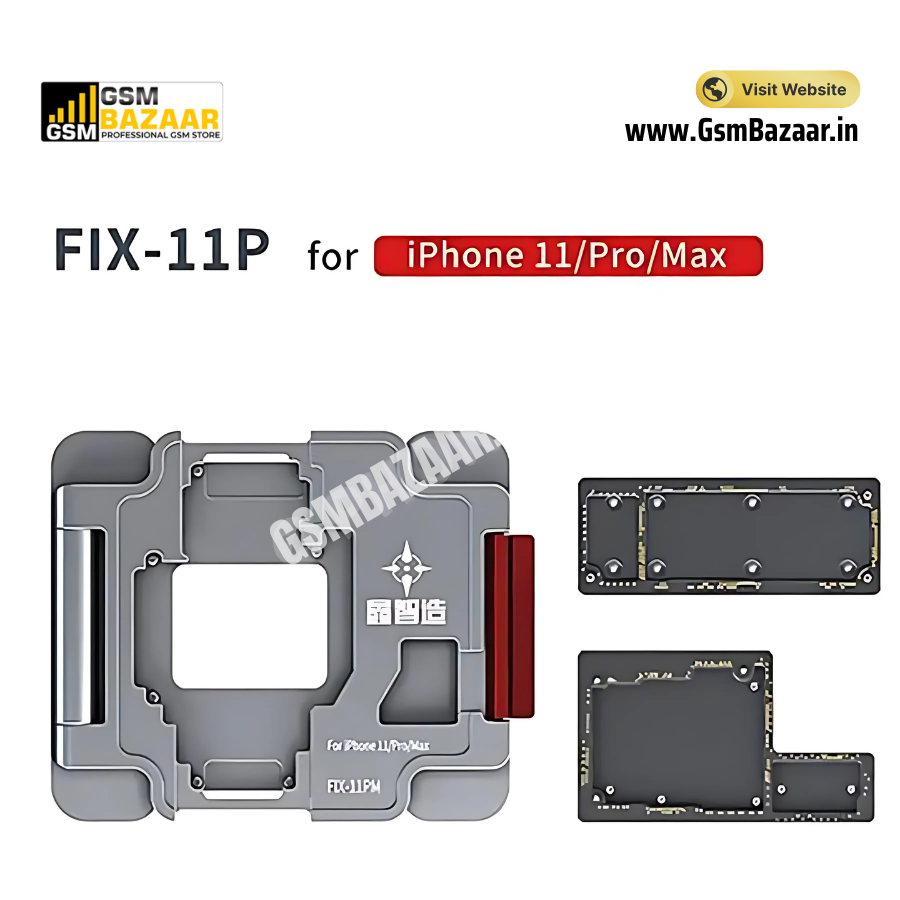

iPhone 11 Series Fixture

For iPhone 11, 11 Pro, 11 Pro Max

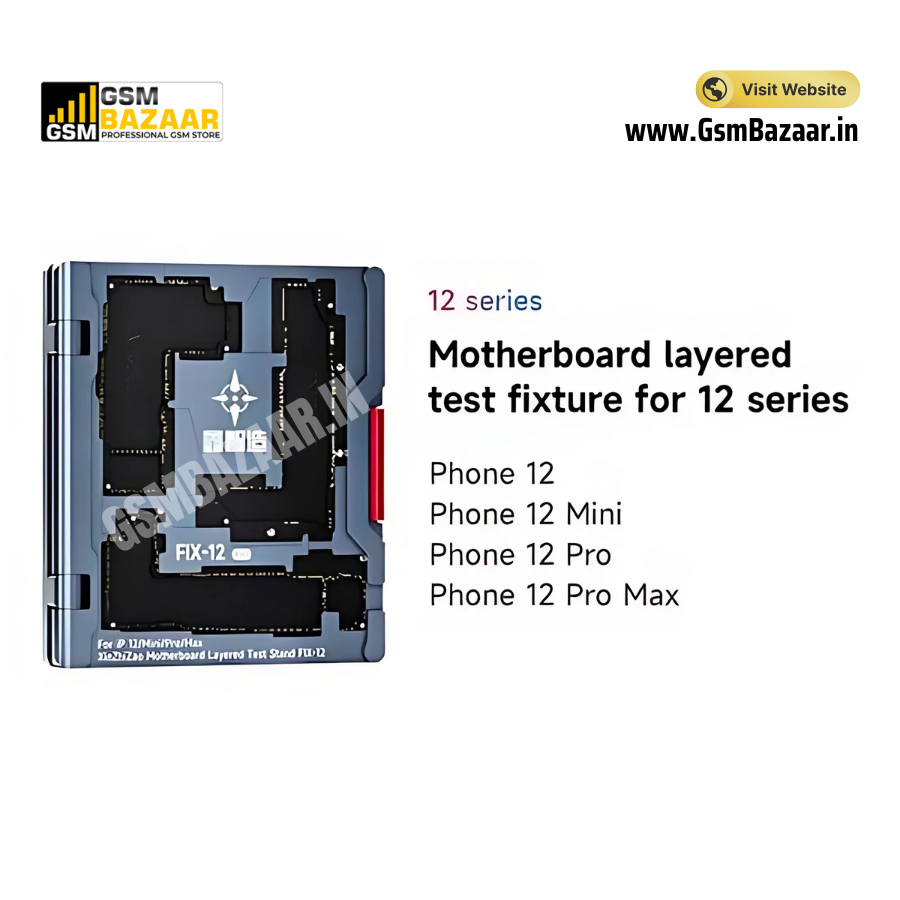

iPhone 12 Series Fixture

For iPhone 12, 12 Mini, 12 Pro, 12 Pro Max

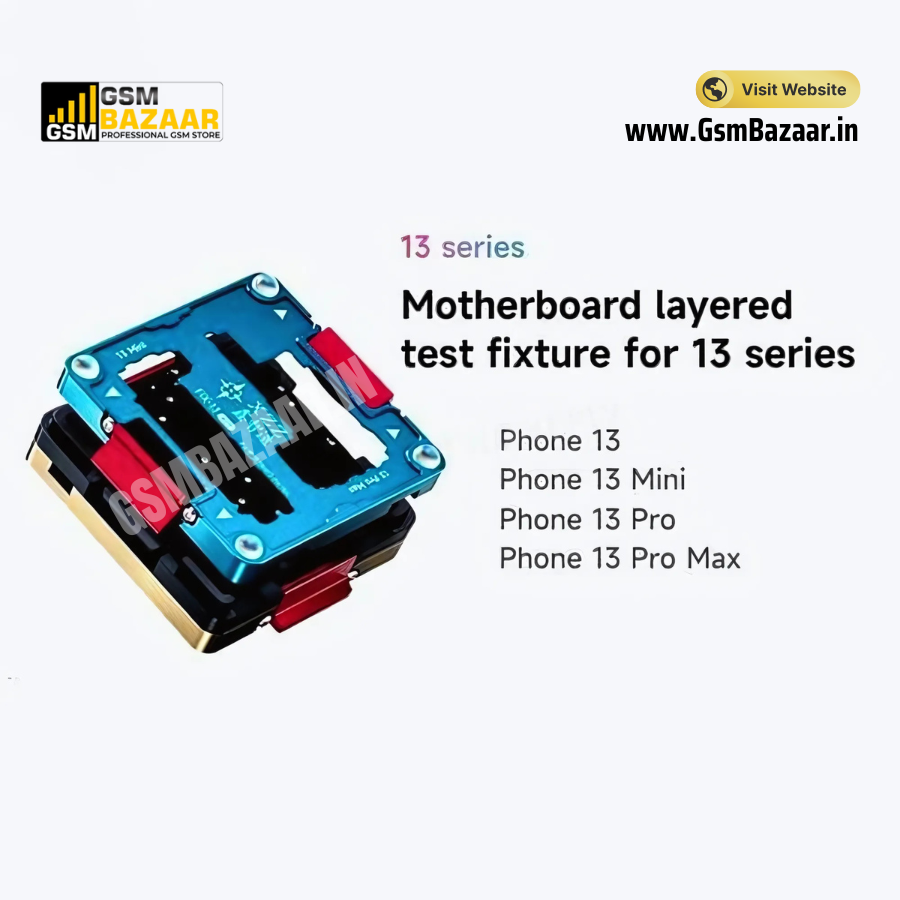

iPhone 13 Series Fixture

For iPhone 13, 13 Mini, 13 Pro, 13 Pro Max

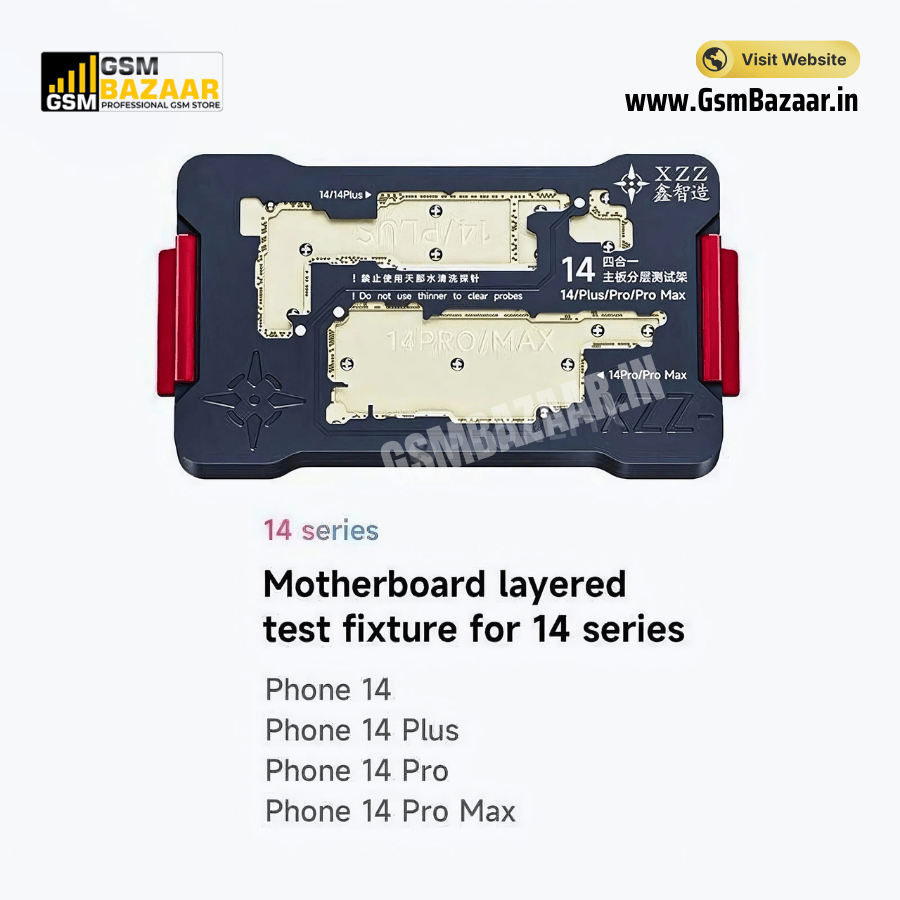

iPhone 14 Series Fixture

For iPhone 14, 14 Plus, 14 Pro, 14 Pro Max

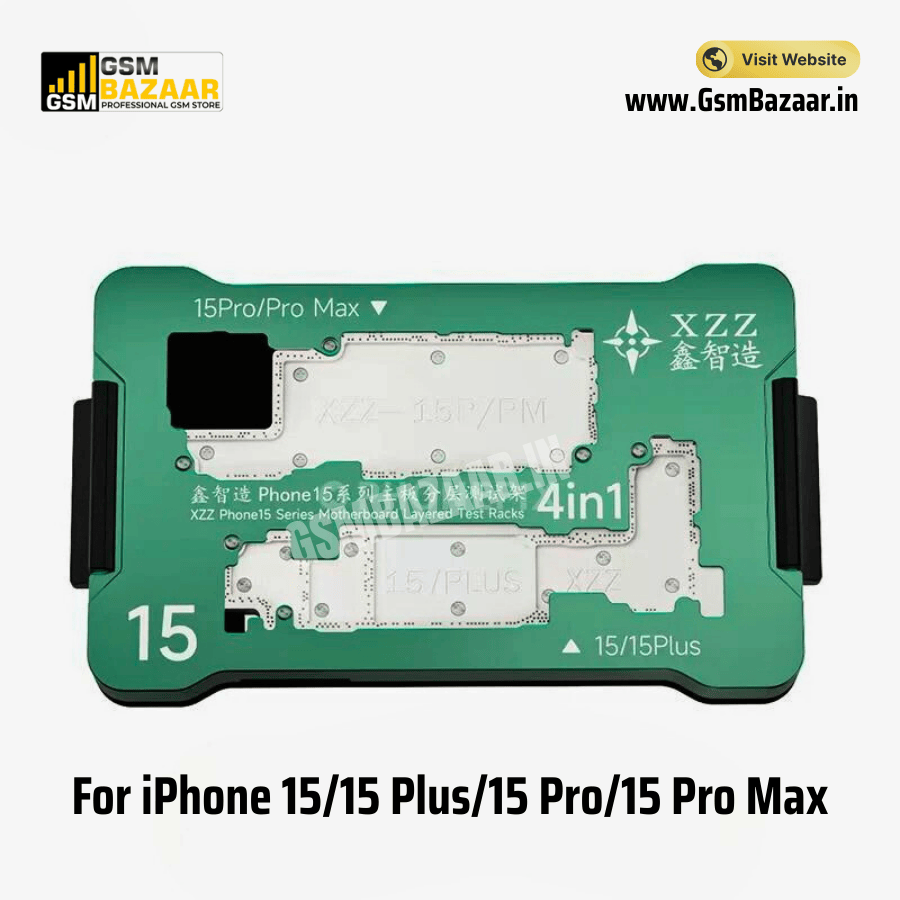

iPhone 15 Series Fixture

For iPhone 15, 15 Plus, 15 Pro, 15 Pro Max

Please note: Two versions are available. The SIM Card version is for most countries. The eSIM version is for US models. If you need to repair a US version later, you can buy a separate pin board.

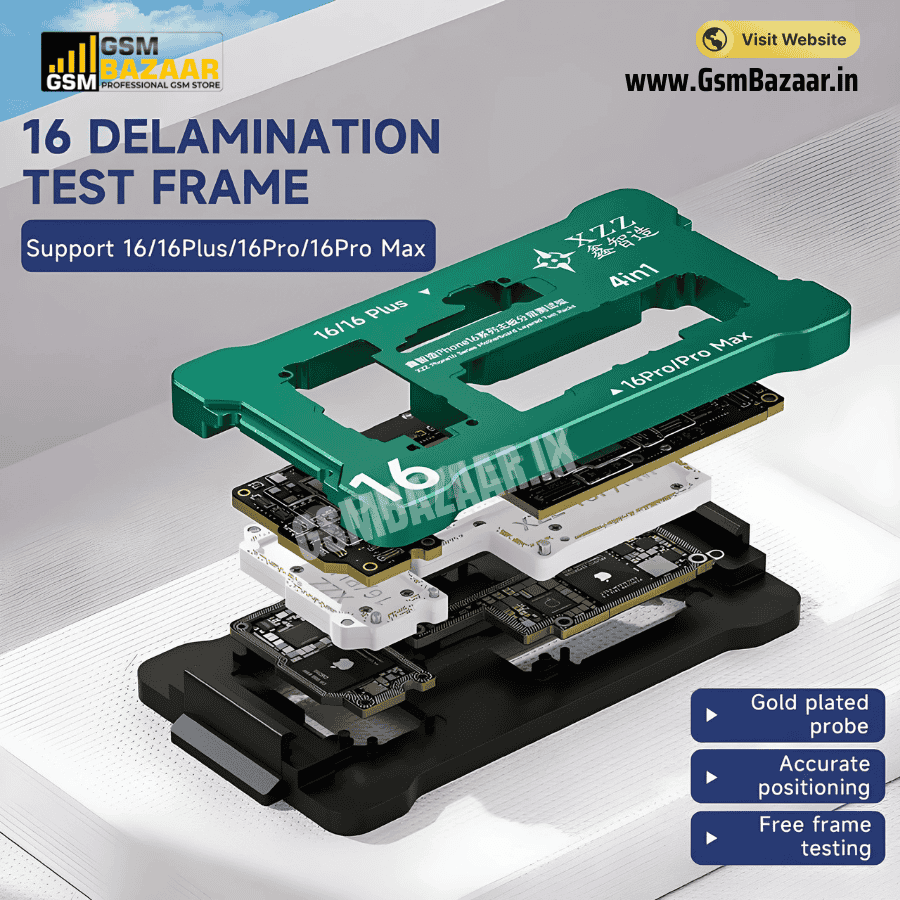

iPhone 16 Series Fixture

For iPhone 16, 16 Plus, 16 Pro, 16 Pro Max

Professional-Grade Features

✓High-quality 0.5mm pure copper probes for reliable connections.
✓High-precision alignment from advanced CNC processing technology.
✓Simple spring button buckle for fast and secure operation.
✓Mini, portable design that's easy to carry and use anywhere.

Simple 4-Step Operation

Place the motherboard's lower layer onto the test fixture base.
Place the corresponding test pin plate onto the motherboard.
Place the motherboard's upper layer onto the test pin plate.
Fasten the buckles on both sides and begin your testing.
